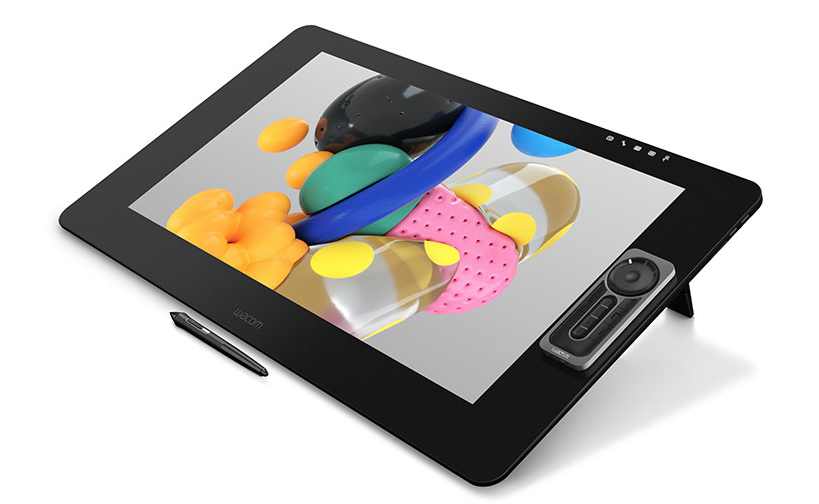

For artists and designers who want to add a world-class pen-on-screen creative experience to their Mac/PC, Wacom Cintiq Pro 24 4K graphic drawing monitor offers Wacom’s most powerful array of capabilities in a 4K graphic drawing monitor. Cintiq Pro 24 features the Wacom Pro Pen 2, high display resolution, and color performance.
Wacom Cintiq Pro 24 4K graphic drawing monitor gives you something priceless: space. So much, in fact, that you won’t waste time searching for that reference image or opening and closing different programs on a secondary screen. And there’ll be less zooming in and out too. Now you can save time and take control of your creativity, for a more efficient, controlled workspace.
The etched glass screen provides a distinct, tactile experience as you draw, mimicking the feel of a pen on paper. And with minimized parallax, and a screen strong enough to resist ‘pooling’ and rippling, each mark appears precisely where you expect it, every time.
What does a 4K graphic drawing monitor bring? Stunning 4K resolution (3840 x 2160 px) is packed into a 24” LCD multi-touch display with world-class color accuracy (99% of Adobe RGB), so you can see every tiny detail of your artwork. The new optical bonding process eliminates parallax, mimicking the precision & feel of pen and paper.
Connect to any Mac or PC with a single USB-C cable (included) to a USB-C port for both video and data. DisplayPort or HDMI are also included, which require USB port for data.
This 4K graphic drawing monitor offers The ExpressKey™ Remote puts 17 programmable buttons within easy reach. The on-screen keypad and the radial menus offer further one-touch shortcuts.
Pan, zoom or rotate your work with multi-touch gestures* – as simple as using your smartphone.
You can trust Wacom to deliver the highest quality products for the best digital pen experience and this 4K graphic drawing monitor is not the exception. Generations of artists have trusted Wacom to understand their needs, deliver products that exceed expectations & stand behind them with world-class support.
Wacom gives you the most accurate/advanced pen performance and realistic pen-on-paper feel. With 4x higher pen accuracy and pressure sensitivity than previous versions, outstanding tilt recognition, zero parallax & virtually lag-free tracking, the Pro Pen 2 delivers the ultimate in creative control.

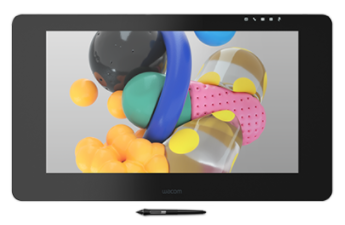

Cintiq 24 4K graphic drawing monitor specs
- Product Type: Creative Pen Display 24
- Model number2 models:
DTK-2420 creative pen display
DTH-2420 creative pen display touch - Display size677 x 394 x 47 mm (26.65 x 15.5 x 1.9 in)
- Display weight7.2 kg (15.87 lbs) without optional stand
- Screen Size (Measured Diagonally)59.94 cm / 23.6 in
- TechnologyIPS UHD high brightness panel
- Displayable colors (maximum)1.07 billion colors (10 bits color)
- Aspect ratio16:9
- Viewing Angle176° (88°/88°) H, (88°/88°) V
- Contrast ratio1000:1
- Brightness235 cd/m2 (min, duty 100%)
- Response14 ms
- Active area522 X 294 mm (20.55 X 11.57 in)
- Color GamutAdobe RGB at CIE1931
Coverage Ratio: 99% - Industry Standard Pre-sets6500° K whitepoint default
- Graphics InputUSB type C port (supporting DisplayPort Alternate Mode) or DisplayPort or HDMI 2.0 port (required for 3840 x 2160 resolution)
- Multi-touch: Yes – on touch model only (DTH-2420)
- PenWacom Pro Pen 2
- Pressure Levels8192, both pen tip and eraser
- Tilt Range60 degrees
- Tilt recognition±60 levels
- TypePressure-sensitive, cordless, battery-free
- SwitchesTip switch, 2 side switches, eraser
- Nibs10 (6 standard, 4 felt) in pen stand
- Pen Box/HolderYes – Pen Holder
- Pen StandYes
- GripLatex-free silicone rubber
- TechnologyPatented electromagnetic resonance method
- Resolution5080 lpi
- ExpressKeys™17 customizable, application-specific on
included ExpressKey™ Remote - Touch RingYes – on included ExpressKey Remote
- Touch Strips: No
- Rocker Ring And Home ButtonYes – on included ExpressKey Remote
- Radial Menu: Yes
- Precision Mode: Yes
- Display toggle: Yes
- Dedicated pan, scroll, zoom, brush size: Yes
- ExpressKey™ Remote dimensions135 x 52 x 10 mm
(5.3 x 2.0 x 0.4 in) - ExpressKey™ Remote continuous operation up to 160 hours, if a key is pressed every 30 seconds
- ExpressKey™ Remote charge time up to 2 hours
- Cables included: USB to USB cable (3m), DisplayPort to DisplayPort cable (3m), HDMI 2.0 to HDMI 2.0 cable (3m), USB-C to USB-C cable (1.8m), DisplayPort to Mini DisplayPort adapter, MicroUSB to USB cable (30 cm; for ExpressKey Remote)
- PC and Mac Connection RequirementsUSB-C supporting DisplayPort Alternate Mode (DP Alt), or DisplayPort and standard USB-A, or HDMI port and standard USB-A port
- Ports included4 x USB3 ports*
1 x USB C port
1 x HDMI2.0 port
1 x DP port
2 USB-A Ports (one for ExpressKey Remote dongle)
*When connected to host computer over USB-C (including Cintiq Pro Engine), Cintiq Pro USB 3.0 ports run at USB 2.0 speeds to accommodate 4K video bandwidth over USB-C. - AudioAudio headset jack, built-in microphone
- Power Supply Input100 to 240 VAC, 50/60HZ
- Power Supply Output19.5V / 9.23A
- Power ConsumptionPower ON mode (Max.): 100 W
Power sleep mode: 2.0 W or lower
Power OFF mode: 0.5 W or lower - BatteryRechargable Li-ion battery on include ExpressKey Remote
- SecurityKensington® Lock Port (lock purchased separately)
- System requirements PC: Windows® 7 or later (latest service pack/build),
Mac: OS X 10.11 or later (latest update); USB-C port with DisplayPort Alternate Mode (UHD), or Mini DisplayPort/DisplayPort (UHD) and USB-A, or HDMI 2.0 (UHD) and USB-A; Internet access for driver download. - What’s included: Wacom Cintiq Pro 24 or Wacom Cintiq Pro 24 touch,
Wacom Pro Pen 2 with 4-color pen ring set,
ExpressKey™ Remote (with USB-A RF dongle and 30cm micro-USB to USB charger cable),
Pen stand with 10 replacement nibs (6 standards, 4 felt) and nib removal tool,
Pen holder,
180W AC adaptor and 1.8m power cable, 1.8m USB-C to USB-C cable, 3m DisplayPort to DisplayPort cable, 3m HDMI2.0 to HDMI2.0 cable
3m standard USB-A to USB-A cable,
DisplayPort to Mini DisplayPort adapter,
Quick Start Guide, Regulation sheet, Cleaning cloth - CertificationsVCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM, KCC, BSMI, C-tick, CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS
- Additional accessories Wacom Cintiq Pro-Flex Arm,
Wacom Ergo Stand,
Wacom Cintiq Pro Engine,
Wacom Color Manager,
Wacom Pro Pen 3D,
Wacom Keyboard,
Replacement Wacom nibs (standard and flex) for Wacom Pro Pen 2,
Wacom Pro Pen slim
Additional previous generation pens (Classic, Airbrush, Art, Pro Pen),
Replacement ExpressKey Remote,
Replacement Wacom Pro Pen 2,
Wacom Cintiq Pro VESA Mount
